Material of Air Bladder Pressure Tank

Tank Metal Body

Interchangable membrane due to screw connection flange cover at the bottom of tank

Flange cover and water connector made of stainless steel material

Resistant up to 10/16/25 bars

Outer surface with epoxy powder paint

Option: Flanges available in carbon steel upon request

Membrane

High quality EPDM membranes, hygienic certified

Option: Butly membranes available upon request

Color:

Blue—RAL 5015

Red—RAL 3020

Option: Other Colors available upon request

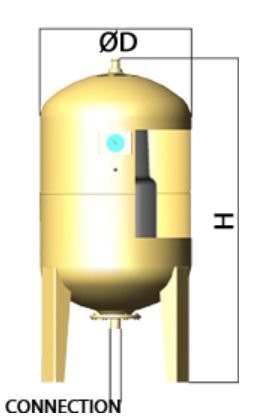

Dimension of Air Bladder Pressure Tank

Vertical Type with Leg

(L) Capacity	(Bar) Pressure	(D) Diameter	(H) Height	Pre- Charge Pressure	Connection
50	10-16-25	350 mm	760 mm	2 bar	1 inch
60	10-16-25	380 mm	870 mm	2 bar	1 inch
80	10-16-25	425 mm	930 mm	2 bar	1 inch
100	10-16-25	460 mm	990 mm	4 bar	1 inch
100	10-16-25	460 mm	990 mm	4 bar	1 inch
150	10-16-25	500 mm	1080 mm	4 bar	1 inch
200	10-16-25	600 mm	1120 mm	4 bar	1 inch
300	10-16-25	640 mm	1250 mm	4 bar	1 1/4 inch
500	10-16-25	750 mm	1490 mm	4 bar	1 1/4 inch
750	10-16-25	800 mm	1920 mm	4 bar	2 inch
850	10-16-25	800 mm	2020 mm	4 bar	2 inch
1000	10-16-25	800 mm	2150 mm	4 bar	2 inch
1500	10-16-25	960 mm	2350 mm	4 bar	2 inch
2000	10-16-25	1100 mm	2450 mm	4 bar	2 1/2 inch
2500	10-16-25	1100 mm	2700 mm	4 bar	2 1/2 inch
3000	10-16-25	1200 mm	2700 mm	4 bar	3 inch
4000	10-16-25	1450 mm	3100 mm	4 bar	3 inch
5000	10-16-25	1450 mm	3100 mm	4 bar	3 inch
10000	10-16-25	1600 mm	5900 mm	4 bar	3 inch

Vertical Type without Leg

(L) Capacity	(Bar) Pressure	(D) Diameter	(H) Height	Pre-Charge Pressure	Connection
2	10-16-25	100 mm	270 mm	2 bar	1/2 inch
5	10-16-25	160 mm	270 mm	2 bar	1/2 inch
8	10-16-25	200 mm	330 mm	2 bar	1 inch
12	10-16-25	240 mm	310 mm	2 bar	1 inch
19	10-16-25	300 mm	310 mm	2 bar	1 inch
24	10-16-25	300 mm	300 mm	2 bar	1 inch
24	10-16-25	350 mm	325 mm	2 bar	1 inch
24	10-16-25	350 mm	410 mm	2 bar	1 inch
35	10-16-25	350 mm	450 mm	2 bar	1 inch
50	10-16-25	350 mm	610 mm	2 bar	1 inch
60	10-16-25	380 mm	650 mm	2 bar	1 inch

Horizontal Type

(L) Capacity	(Bar) Pressure	(D) Diameter	(H) Height	Pre-Charge Pressure	Connection
19	10-16-25	340 mm	370 mm	2 bar	1 inch
24	10-16-25	340 mm	430 mm	2 bar	1 inch
35	10-16-25	400 mm	450 mm	2 bar	1 inch
50	10-16-25	400 mm	610 mm	2 bar	1 inch
60	10-16-25	440 mm	730 mm	2 bar	1 inch
80	10-16-25	520 mm	805 mm	2 bar	1 inch
100	10-16-25	550 mm	820 mm	2 bar	1 inch
