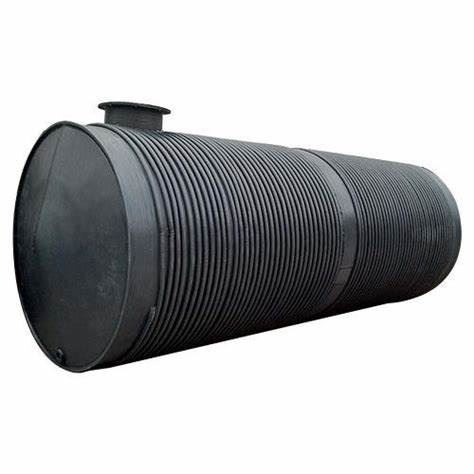

Spiral Wounded Plastic Tank

Spiral Wounded Plastic Tank is made of PPH (polypropylene )or HDPE (high-density polyethylene) plastic by expanded winding without welding seam technology, In the production process. The Spiral Wounded Plastic Tank is processed from a single material of the same kind, but it still has the characteristics of non-leakage and weldability. It is cheaper than that of stainless steel products. The Spiral Wounded Plastic Tank is widely used in various applications: water treatment, chemical industry, steel, metallurgy, pharmacy, papermaking, electric power, food, etc.

Send Inquiry

Add To Inquiry

Reference Standard of Spiral Wounded Plastic Tank

EN12573

Advantage of Spiral Wounded Plastic Tank

Non-corrosive (Chemical and Corrosion resistance)

Long-lasting

Leak-proof

Lightweight

Low maintenance

Easy to clean & maintain

Category of Spiral Wounded Plastic Tank

	PPH Tank
	Working Pressure: -2Kpa—3Kpa
	Working Temperature: -20℃—100℃
	Size: Volume Capacity: ≤130m³ Diameter: 0.5-4.2m Height: ≤9.4m
	HDPE Tank
	Working Pressure: -2Kpa—3Kpa
	Working Temperature: -30℃—60℃
	Size: Volume Capacity: ≤130m³ Diameter: 0.5-4.2m Height: ≤9.4m

Cover and Base of Spiral Wounded Plastic Tank

Cover Types	Base Types

Flat	Flat Base

Conical	3% Inclined

Oval	120° Conical Inside

Bolted	120° Conical Outside Rim

	120° Conical Outside Rim With Support
