GRP Storage Tank
Application of GRP Storage Tank
GRP Storage Tanks are widely used in chemical, food, petrochemicals, ferrous metallurgy, medicine and health, nonferrous metallurgy, wastewater, power, coal, electrical machinery, textile, automobile and motorcycle manufacturing, railway, ship and construction industries, light industry, electronics industry as well as agriculture, commerce, military and civil sectors, etc.
Advantage of GRP Storage Tank
● Light weight yet high strength
● Excellent corrosion resistance
● Good dielectric properties
● Good thermal properties
● Flexible design
Types of GRP Storage Tank
Vertical GRP Storage Tank
Vertical GRP Storage Tanks, are a kind of vertical nonmetallic container with a circular end cap and a flat end cap, Vertical GRP Storage Tanks occupy a small footprint area and commonly work in clusters to achieve amazing storage capacity in limited space.
| 1. Barrier: Protect the safety of workers. 2. Cover: Hand lay-up 3. Shell: Microcomputer controlled filament winding process 4. Ladder: Facilitate workers to carry out their work. 5. Bottom: Hand lay-up 6. Flange hole: Store or discharge gases or fluids. 7. Manhole: Facilitate workers to check and observe conditions inside the tank. |
Model | Nominal Volume | Actual Volume | Tank Size | Height of Dished End f | Inlet Diameter b1 | Outlet Diameter b2 | Thickness | Approx. Weight | Nominal Volume |
(m3) | (m3) | D (mm) | L (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
VGRPT-05 | 5 | 5.63 | 1600 | 2800 | 250 | 450 | 50 | 18 | 557 |
VGRPT-10 | 10 | 10.05 | 2000 | 3200 | 300 | 450 | 50 | 20 | 892 |
VGRPT-15 | 15 | 15.2 | 2200 | 4000 | 350 | 500 | 50 | 20 | 1200 |
VGRPT-20 | 20 | 20.8 | 2400 | 4600 | 400 | 500 | 80 | 20 | 1469 |
VGRPT-25 | 25 | 25.48 | 2600 | 4800 | 450 | 500 | 80 | 25 | 2108 |
VGRPT-30 | 30 | 30.78 | 2800 | 5000 | 480 | 500 | 80 | 28 | 2663 |
VGRPT-50 | 50 | 49.48 | 3000 | 7000 | 500 | 500 | 100 | 35 | 4830 |
VGRPT-60 | 65 | 65.02 | 3000 | 9200 | 500 | 500 | 100 | 40 | 6939 |
Horizontal GRP Storage Tank
Horizontal GRP Storage Tanks are a kind of horizontally placed GRP Storage Tanks having cambers at both ends and saddles in the middle part. The wall thickness of Horizontal GRP Storage Tanks is 30% – 40% higher than that of Vertical GRP Storage Tanks. Filament cross winding is adopted for tank shell fabrication, thereby offering a higher shear strength. In places where saddle supports are placed, partially reinforced shall be provided in the radius direction. Horizontal GRP Storage Tanks are applicable to be placed indoors with height restrictions or on the top of buildings due to its lower height, simple operation and stable gravity center.
Model | Nominal Volume | Actual Volume | Main Container | Thickness | Weight | |||||
(m3) | (m3) | Dia.(mm) | L1 (mm) | L2 (mm) | a (mm) | b (mm) | c (mm) | (mm) | (kg) | |
HGRPT-03 | 3 | 2.93 | 1000 | 3900 | 3400 | 500 | 25 | 50 | 12 | 297 |
HGRPT-04 | 4 | 4.07 | 1200 | 3800 | 3200 | 500 | 25 | 80 | 15 | 480 |
HGRPT-05 | 5 | 5.03 | 1400 | 3700 | 2800 | 500 | 25 | 80 | 18 | 650 |
HGRPT-06 | 6 | 6.3 | 1600 | 3400 | 2600 | 500 | 25 | 80 | 18 | 750 |
HGRPT-08 | 8 | 8.64 | 1800 | 3700 | 2800 | 500 | 25 | 80 | 20 | 840 |
HGRPT-10 | 10 | 10.17 | 1800 | 4300 | 3400 | 500 | 40 | 80 | 20 | 1060 |
HGRPT-16 | 16 | 15.17 | 1800 | 6500 | 5600 | 500 | 40 | 80 | 20 | 1500 |
HGRPT-20 | 20 | 20.26 | 2200 | 5700 | 4600 | 500 | 50 | 100 | 25 | 2273 |
GRP Storage Tank Accessories
|
|

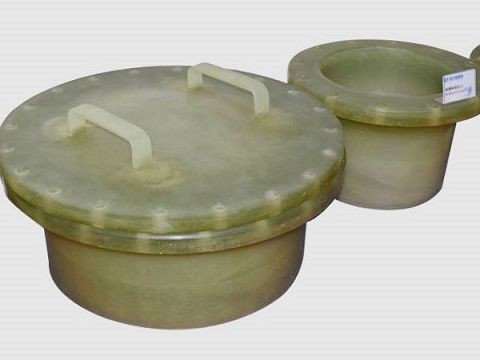

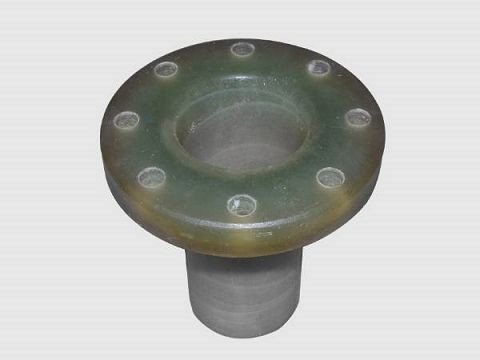

Flange Hole | Manhole |
|
|

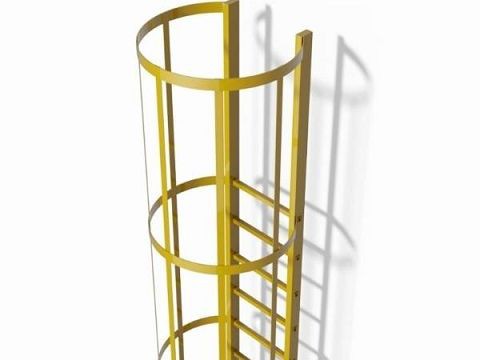

Ladder | Saddle Support |
