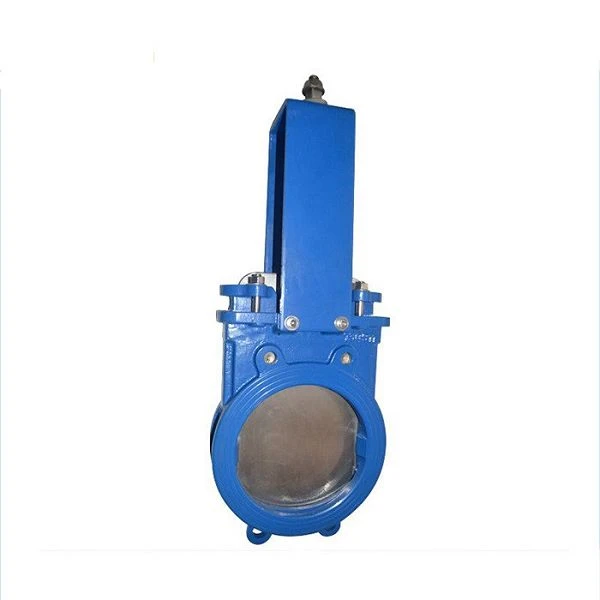

Ductile Cast Iron Knife Gate Valve

Ductile Cast Iron Knife Gate Valve, made of Ductile Cast Iron, is designed mainly for on-off and isolation services in systems with high content of suspended solids. Knife Gate Valves are especially beneficial for handling slurry, viscous, corrosive and abrasive media and they are ideal for all industrial shut-off applications for example in pulp & paper and water & wastewater industries.

Send Inquiry

Add To Inquiry

Product Details ofDuctile Cast Iron Knife Gate Valve

Ductile Cast Iron Knife Gate Valves have two types: NRS (Non-Rising Stem) and OS&Y (Outside Stem and Yoke).

image001_

Description

Size: DN50-600

Class: PN6/PN10/PN16

Test: EN12266

Flange: EN1092-2/ISO7005-2

Operation: Handwheel/Extension/Gearbox

Material List
No.	Part	Material
1	U Seat	EPDM/NBRD
2	Body	Ductile Iron
3	Knife	SS304/316
4	Stem	SS420/304
5	Cover	Ductile Iron
6	Seal Nut	Brass
