Ductile Cast Iron Hydrant
THIT supply a full range of Ductile Cast Iron Hydrant and they encompass the prevailing hydrants used around the world.

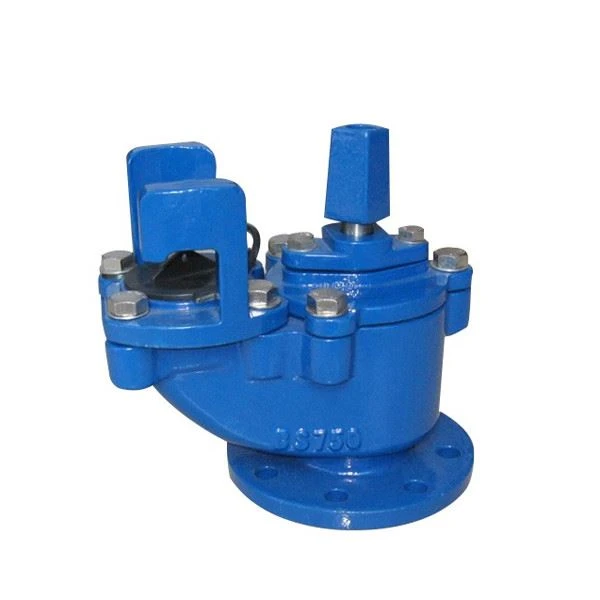

BS 750 Type Ⅱ Underground Hydrant
This Underground Hydrant is installed on under pressure water network, allows a connection to ground level, it is primarily designed in case of small pavement size to make traffic obstacle free. It combines easy and simple way to install in street box.
| Reference Standard | BS750 |
Inlet Flange | DN80 | |
Outlet | DN65 (2-1/2") | |
Hydro Test (Body) | 24Bar | |
Hydro Test (Seat) | 16Bar |
| Outlet Types: ● London Round Thread ● Belfast V ● Instantaneous ● Bayonet |
Material | ||
NO. | Part | Material |
1 | Body | Ductile Iron |
2 | Bolt | S.S 304 |
3 | Holder | S.S 304 |
4 | Gasket | NBR |
5 | Disc | Ductile Iron |
6 | Stem Nut | Bronze |
7 | Screw | Steel |
8 | Stem | S.S 420 |
9 | O-Ring | NBR |
10 | Cover | Ductile Iron |
11 | Washer | Copper |
12 | O-Ring | NBR |
13 | Cap Gasket | Plastic |
14 | Driver Cap | Cast Iron |
15 | Bolt | S.S |
16 | Indicator Cap | Plastic |
17 | Bolt | S.S |
18 | Washer | S.S |
19 | Dust Cap | Plastic |
20 | Outlet | Brass |
21 | O-Ring | NBR |
22 | Rope | S.S |
23 | Plug | Plastic |
Australian Spring Type Hydrant
Spring Hydrants comply with AS3952 and are suitable for use in potable water and non-potable systems. It is operated by means of standpipe attachment for firefighting purpose, as well as pipeline flushing and scouring.
Reference Standard | Size | Flange |
AS3952 | DN80/100 | AS4087 |
Use:
For fire protection services, water and neutral liquid applications.
Valve designed for use up to 70℃.
Test:
Hydraulic test to AS 3952:
Seat: 1.1 x PN
Body: 1.5 x PN
Component List
No. | Component | Material | No. | Component | Material |
1 | Body | Ductile Iron | 6 | Valve Guide | |
2 | Valve Seat | EPDM | 7 | Bolt | S.S 316 |
3 | Yoke | Ductile Iron | 8 | Washer | S.S 431 |
4 | Dome | Brass | 9 | Nut | S.S 316 |
5 | Spring | S.S 304 | 10 | Plug | HDPE |
Coating: Electrostatically applied epoxy resin - internally and externally to AS/NZS 4158
Dimensions
DN (mm) | H (mm) | L (mm) | L1 (mm) |
80 | 268 | 218 | 185 |
100 | 268 | 218 | 215 |
AWWA C502 Dry Barrel Hydrant
A Dry-Barrel Hydrant is a post type hydrant with compression shutoff (opening against or with pressure) or gate valve shutoff for use in fire protection service in all climates, including those where freezing occurs.
 | Specification |
One Pumper nozzle, 4.5-4NH thread. Two hose nozzle, 2.5-7.5NH thread. Other threads are available. Multiple buried lengths available. 6" mechanical joint designed to ANSI/AWWA C153/A21.53. | |
Working Pressure | |
250PSI | |
Corrosion Protection | |
Fusion Bonded Epoxy/Polyster as per AWWA C550 |
No. | Part | Material |
1 | Operating Nut | Bronze |
2 | Hold Down Nut | Bronze |
3 | O-Ring | NBR |
4 | Bonnet | Cast Iron |
5 | Bonnet Bolt & Nut | Stainless Steel |
6 | Upper Rod | Carbon Steel |
7 | Pumper Nozzle | Bronze |
8 | Pumper Nozzle Gasket | NBR |
9 | Hose Nozzle | Bronze |
10 | Hose Nozzle Gasket | NBR |
11 | Pumper Nozzle Cap | Cast Iron |
12 | Hose Nozzle Cap | Cast Iron |
13 | Cap Chain | Carbon Steel |
14 | Standpipe Upper | Cast Iron |
15 | Safety coupling | Stainless Steel |
16 | Safety Flange Bolt & Nut | Stainless Steel |
17 | Safety Flange | Cast Iron |
18 | Lower Rod | Carbon Steel |
19 | Standpipe Lower | Cast Iron |
20 | Stem Pin | Stainless Steel |
21 | Drain Ring Housing | Ductile Iron |
22 | Drain Ring | Bronze |
23 | Seat Ring | Bronze |
24 | Bottom Plate | Ductile Iron |
25 | Disc Ring | NBR |
26 | Bottom Plate Nut | Ductile Iron |
27 | Elbow | Ductile Iron |
AWWA C503 Wet Barrel Hydrant
A Wet-Barrel Hydrant is used in water-supply service in areas where the climate is mild and freezing temperatures do not occur and it has one or more valve openings above the ground line and, under normal operating conditions, the entire interior of the hydrant is subjected to water pressure at all times. Each outlet nozzle has an independent, compression-type valve (i.e., working with or against the pressure) that controls discharge from that particular outlet.
Specification | Working Pressure |
AWWA C503 4 1/2 pumper nozzle; 6mm hose nozzle. Nozzle thread: NPFA 1963 Flange: ANSI B16.1 Class125 (6") Other types available upon request | 125PSI/250PSI |
Corrosion Protection | UL/FM |
Fusion Bonded Epoxy/Polyster as per AWWA C550 | Listed and Approved |
Material
No. | PART | Materials |
1 | Body | Ductile Iron |
2 | Pumper Nozzle Cap | Cast Iron |
3 | Pumper Nozzle | Bronze |
4 | Main Valve | NBR |
5 | Main Valve Holder | Stainless Steel |
6 | Hose Nozzle Cap | Cast Iron |
7 | Hose Nozzle | Bronze |
8 | Stem | Stainless Steel |
9 | Stem Nut | Bronze |
10 | Operating Nut | Bronze |
11 | O-Ring | NBR |
12 | Pumper Nozzle Gasket | NBR |
13 | Hose Nozzle Gasket | NBR |
