Application of HDPE Geomembranes

● Landfill lining and capping

● Reservoirs for water and wastewater

● Pond lining

● Irrigation canals

● Manmade lakes

● Oil storage

Advantage of HDPE Geomembranes

◆ Good flexibility.

◆ Service temperature range: -70°C -- +110°C

◆ Corrosion resistance, and aging resistance.

◆ Excellent environmental stress cracking resistance

◆ High tensile strength and elongation.

Reference Standard of HDPE Geomembranes

CJT234-2006

GBT17643-2011

GRI-GM13

Types of HDPE Geomembranes

HDPE Geomembranes are available in three types: Smooth and Textured

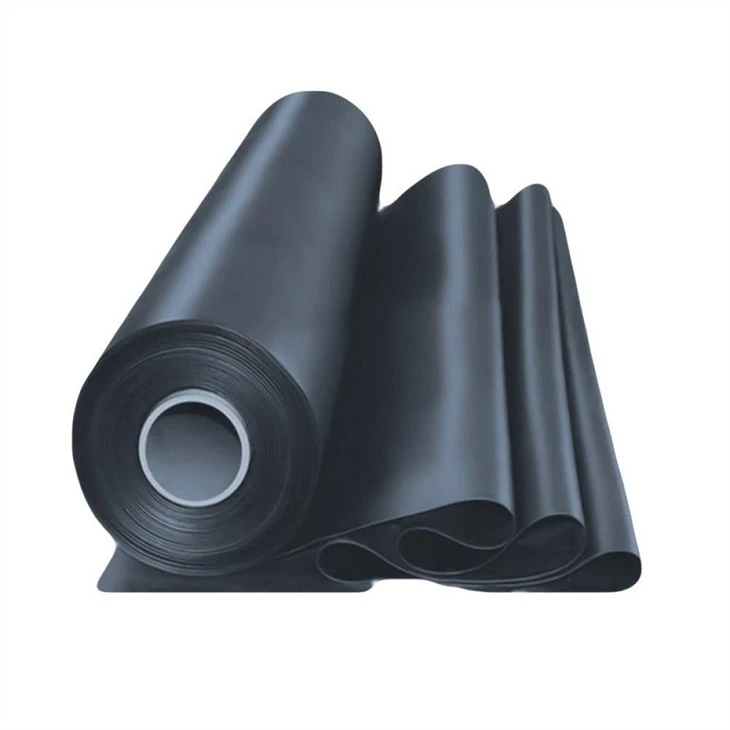

Smooth HDPE Geomembrane

Made from high density polyethylene resins, Smooth HDPE Geomembranes are the most widely used products for lining of landfills, mines, reservoirs and other fluid containment applications. They are preferred for sites requiring low permeability and exceptional chemical and ultraviolet resistance properties.

Width: 4-9m, Length: according to request

Properties	Test Method	Unit	Model
Thickness	ASTM A5199	mm	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density	ASTM D1505	g/cm3	≥0.94
Tensile strength at break Tensile strength at yield Elongation at break Elongation at yield	ASTM D6693	kN/m kN/m % %	≥20 ≥11 ≥700 ≥12	≥27 ≥15 ≥700 ≥12	≥33 ≥18 ≥700 ≥12	≥40 ≥22 ≥700 ≥12	≥53 ≥29 ≥700 ≥12	≥67 ≥37 ≥700 ≥12	≥80 ≥44 ≥700 ≥12
Tear resistance	ASTM D1004	N	≥93	≥125	≥160	≥190	≥250	≥315	≥375
Puncture resistance	ASTM D4883	N	≥240	≥320	≥400	≥480	≥640	≥800	≥960
Carbon black content	ASTM D4218	%	2-3
Carbon black dispersion	ASTM D5596		9 in Categories 1 or 2 and 1 in Category 3
Oxidative induction time (OIT)	ASTM D3895 ASTM D5885	min.	Standard≥100 High Pressure≥400
Oven aging at 85℃, OIT retained after 90days	ASTM D5721 ASTM D3895 ASTM D5885	%	Standard OIT ≥55 High Pressure ≥80
UV resistance, OIT retained after 1600hrs	ASTM D5885	%	≥50

Textured HDPE Geomembrane

Textured HDPE Geomembranes also called Rough HDPE Geomembranes are produced from high density polyethylene (HDPE) resins resulting in a high quality premium grade geomembrane with either single or double textured surface, has been formulated to be chemical resistant, free of leachable additives and resistant to ultraviolet degradation.

Width: 4-9m, Length: according to request

Properties	Test Method	Unit	Model
Thickness	ASTM A5199	mm	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Asperity	ASTM D7466	mm	0.25
Density	ASTM D1505	g/cm3	≥0.94
Tensile strength at break Tensile strength at yield Elongation at break Elongation at yield	ASTM D6693	kN/m kN/m % %	≥8 ≥11 ≥100 ≥12	≥10 ≥15 ≥100 ≥12	≥13 ≥18 ≥100 ≥12	≥16 ≥22 ≥100 ≥12	≥21 ≥29 ≥100 ≥12	≥26 ≥37 ≥100 ≥12	≥32 ≥44 ≥100 ≥12
Tear resistance	ASTM D1004	N	≥93	≥125	≥160	≥190	≥250	≥315	≥375
Puncture resistance	ASTM D4883	N	≥200	≥267	≥333	≥400	≥534	≥667	≥800
Carbon black content	ASTM D4218	%	2-3
Carbon black dispersion	ASTM D5596		9 in Categories 1 or 2 and 1 in Category 3
Oxidative induction time (OIT)	ASTM D3895 ASTM D5885	min.	Standard≥100 High Pressure≥400
Oven aging at 85℃, OIT retained after 90days	ASTM D5721 ASTM D3895 ASTM D5885	%	Standard OIT ≥55 High Pressure ≥80
UV resistance, OIT retained after 1600hrs	ASTM D5885	%	≥50
