Steel Scaffolding

Ringlock Scaffolding

Ringlock Scaffolding is one of the most popular types of scaffolding systems in the world. As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspended.

Standard

The vertical standard bears the loads from the scaffold down to the earth, providing vertical support for the scaffolding. The standard has rosettes at 50 cm interval, a spigot on the top and drilled holes at both end.

Length: 0.5/1/1.5/2m

Diameter: 48.3mm

Tube Thickness: 3.2mm

Surface Treatment: HDG/Powder Coating

Material: Carbon Steel

Ledger

The horizontal ledgers in several lengths are used as horizontal supports for loads and planks. Ledgers are also used as guard rails.

Length: 0.73/1.09/1.4/1.57/2.07/2.57/3.07m

Diameter: 48.3mm

Tube Thickness: 3.2mm

Surface Treatment: HDG/Powder Coating

Material: Carbon Steel

Diagonal Brace

Diagonal braces are used for lateral bracing, increasing stiffness of the scaffold. Diagonal braces can also be used as guard rails in conjunction with the stair system.

Size: 2.0*0.73/2.0*1.09/2.0*1.57/2.0*2.07/2.0*2.57/2.0*3.07m

Diameter: 48.3mm

Tube Thickness: 2.5mm

Surface Treatment: HDG/Powder Coating

Material: Carbon Steel

Plank

Length: 1000/1200/1500/2000/2500/3000mm

Base Plate

Size: 120*120*2.5mm

Cuplock Scaffolding

Cuplock Scaffolding System use for building bridges and engineering construction

1. One set of Cuplock Scaffolding usually include 4 standards and 8 ledgers.

2. Cuplock Scaffolding is easy and quick to install which can save time.

3. Cuplock Scaffolding provides high loading capacity while its structure is quite flexible.

4. All the Cuplock Scaffolding parts are galvanized, it is more durable and has a longer working life.

Standard

Size: 48.3*3.2*500/1000/1500/2000/2500/3000mm

Material: Carbon Steel

Ledger

Size: 48.3*3.2*914/1219/1524/1829/2438/3048mm

Material: Carbon Steel

Ledger

Size: 48.3*3.2*914/1219/1524/1829/2438/3048mm

Material: Carbon Steel

Kwikstage Scaffolding

1. The Kwikstage Scaffolding has a fleetly erection speed so that it save time and labor cost.

2. The Kwikstage Scaffolding has reliable and durable welding part and precision cast components.

3. The kwikstage Scaffolding can be used for both interior and exterior building construction.

4. This steel tubular Kwikstage Scaffolding is heavy duty system which has a high loading capacity.

5. Versatile in different heights and sizes, the Kwikstage Scaffolding can almost meet requirements of any constructions.

Standard

Length: 0.5/1/1.5/2/2.5/3m

Diameter: 48.3mm

Tube Thickness: 3.2mm

Ledger

The horizontal ledgers in several lengths are used as horizontal supports for loads and planks. Ledgers are also used as guard rails.

Length: 0.56/0.76/0.812/1/1.27/1.828/2.438/3.048m

Diameter: 48.3mm

Tube Thickness: 3.2mm

Diagonal Brace

Length: 1220/2220/1669.8/1954.7/2353.3/2694.4/3131.5/3475.2mm

Diameter: 48.3mm

Tube Thickness: 2.5mm

Transom

Length:482/512/712/764/952/1222/1780/2390/3000mm

Quicklock Scaffolding

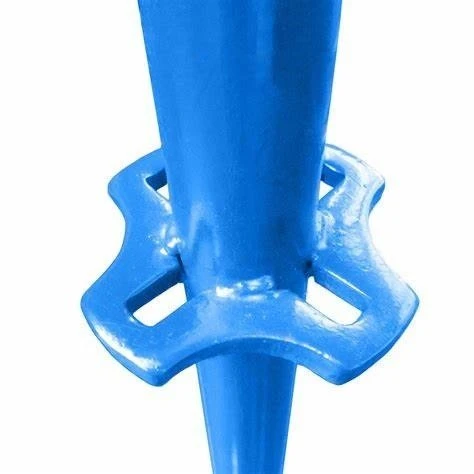

1. Metal Quicklock Scaffoldingsystem is widely used to support concrete wall and slab beams by connecting U head jack and jack base.
2. High strength and durability: Material of quick-lock scaffolding is carbon steel. Quicklock plate is pressed from dug iron. Quicklock ledger end is made from precision cast iron.

Frame Scaffolding

Frame Scaffolding are the most common type of scaffold because they are versatile, economical, and easy to use. They are frequently used in one or two tiers by residential contractors, painters, etc., but their modular frames can also be stacked several stories high for use on large-scale construction jobs. Main frame scaffolding (one set) usual include: Main frame, cross brace, catwalk, joint pin. Other selective parts: staircase, caster wheel, rail post, guardrail and adjustable level leg.

1. This kind of scaffolding is mainly made of main frame, main pipe, sub-main pipe, cross brace and joint pin.

2. The structure of the scaffolding is simple, so it is easy to assemble and disassemble.

3. The scaffolding can be reused. even though it is out of work, the material can also be recycled.

4. Steel scaffolding can be adjusted when it is together used with the scaffolding jack base

Frame

Portal Frame: 1219*1524/1700/1930mm

Ladder Type Frame: 1219*914/1524/1700/1930mm

Material: Carbon Steel

Surface Treatment: HDG/Electro-Galvanized/Painted

Cross Brace

Size: 21*1.4*1363/1724/1928/2198mm
