Metal Fence
Types of Fence
Chain Link Fence
Chain Link Fence, also known as cyclone fence, hurricane fence or diamond mesh fence, is a type of woven fence usually made of galvanized or PVC coated steel wire. The wires are woven together to form beautiful diamond patterns. It offers a cost-effective solution for residential and commercial applications. Typically, the shorter heights are commonly selected for residential uses while the taller heights are most often for commercial and industrial uses to provide more security. Besides, it is a great option for road, railway, airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.
Mesh opening (D) | 1' | 1.5' | 2' | 2-1/4" | 2-3/8' | 2-1/2" | 2-5/8" | 3' | 4' |
25 mm | 40 mm | 50 mm | 57 mm | 60 mm | 65 mm | 70 mm | 75 mm | 100 mm | |
Wire diameter (C) | 18 Ga. – 13 Ga. | 16 Ga. – 8 Ga. | 14 Ga. –6 Ga. | ||||||
1.2–2.4 mm | 1.6–4.2 mm | 2.0–5.0 mm | |||||||
Width (B) | 50–100 m (or more) | ||||||||
Height (A) | 0.5–6.0 m | ||||||||
Round post & rail diameter (F) | 32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm; thickness: 0.8–5.0 mm | ||||||||
Tension Bar(E) | 25.0 mm × 5.0 mm | ||||||||
Clamp(G) | Metal clamp | ||||||||
Post Cap(H) | Metal rain cap/anti-UV PP cap | ||||||||
358 High Security Fence
358 High Security Fence, also known as anti-climb fence, is a kind of superior high tensile and high security welded wire mesh fence. The fence name 358 comes from its panel with a mesh opening of 3" × 0.5" and a wire diameter of 8-gauge (approximate to 76.2 mm × 12.7 mm × 4 mm). It is deigned to be a robust, anti-climb and anti-cut barrier to provide high security protection. The mesh opening is so small, you can even put your finger on it, which makes it is almost impossible to be climbed and cut. Meanwhile, the 8-gauge wire is strong enough to form a rigid structure, which make it is extremely perfect to secure your property and realize effective access control. It is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.
Height (A) | 1200–2500 mm |
Width (B) | 2000–3100 mm |
Wire Diameter (C) | 3.2 mm (10 gauge), 4.0 mm (8 gauge) |
Mesh Opening (D) | 12.7 × 76.2 mm (0.5" × 3") |
Clamp (E) | Metal clamp/tension bar covered |
Post (F) | Square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm); |
Post Cap (G) | metal rain cap / anti-UV Plastic cap |
Note: 3510 high security fence is also available. 3510 high security fence has the same mesh opening as the 358 high security fence, the only difference is the wire diameter is 10-gauge instead of 8-gauge. | |
Double Wire Fence
Double Wire Fence, also known as twin wire fence, is a kind of specially designed welded wire fence with double horizontal wires welded to single vertical wire. Its unique structure makes it stronger and more durable than single wire fence. Double Wire Fence is made of high quality carbon steel wires with a diameter of 6/5/6 mm or 8/6/8 mm. Typically, it cannot come with folds because of its vertical wire is too strong for bending. Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life. Double Wire Fence is very popular in European markets and is widely used in various residential, commercial and industrial applications, including but not limited to, playgrounds, schools, communities, gardens, parks, etc.
Height (A) | 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm |
Width (B) | 2000 mm, 2500 mm, 3000 mm |
Wire Diameter (C) | 6/5/6 mm, 8/6/8 mm |
Mesh Opening (D) | 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm |
Clamp (E) | metal clamp |
Post (F) | round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); |
Post Cap (G) | metal cap / anti-UV plastic cap |
BRF Fence
BRC Fence, also known as roll top fence, is a kind of specially designed welded wire mesh fence with unique top and bottom "rolled" edges. It is manufactured from high tensile steel wires that are welded together and bent to form a triangular roll top surface at its top and bottom to provide a firm structure and accurate mesh openings. Its rolled edges not only offer an authentic user-friendly surface, but also give maximum rigidity and excellent visibility. Currently, it is very popular among Singapore, Japan, South Korea and Southeast Asia regions and is mainly used as security fence or barriers in, including but not limited to, parks, schools, playgrounds, factories, parking lots, residential communities, etc.
Height (A) | 900–2400 mm |
Width (B) | 1500–3000 mm |
Wire Diameter (C) | 4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm |
Mesh Opening (D) | 50 × 150 mm, 50 × 200 mm, 50 × 300 mm |
Clamp (E) | Metal clamp / anti-UV plastic clamp |
Post (F) | Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); |
Post Cap (G) | Metal cap/anti-UV plastic cap |

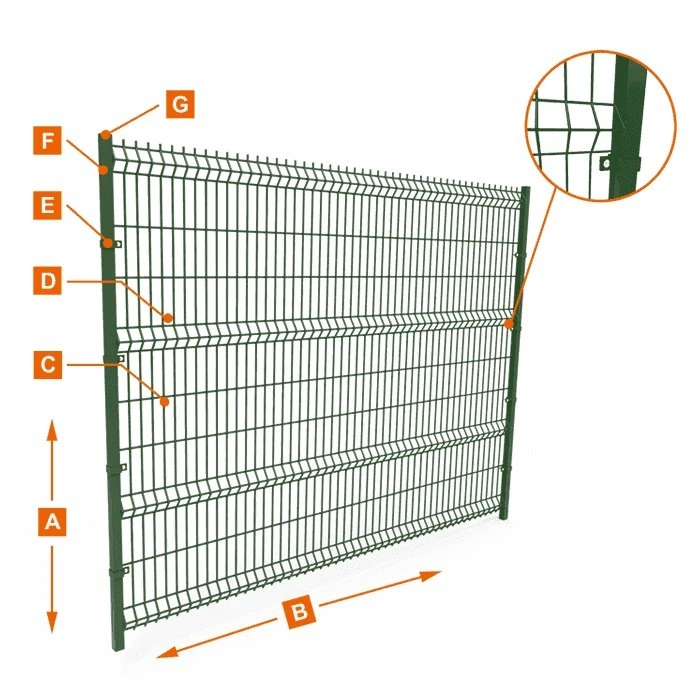

Curvy Welded Fence
Curvy Welded Fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, factories, etc.
Height (A) | 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm |
Width (B) | 2000 mm, 2500 mm, 2900 mm |
Wire Diameter (C) | 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm |
Mesh Opening (D) | 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc. |
Clamp (E) | Metal clamp / anti-UV plastic clamp / no clamp (for peach post) |
Post (F) | Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); |
Post Cap (G) | Metal cap/anti-UV plastic cap |
Tubular Steel Fence
Tubular Steel Fence is a kind of ornamental fence with simple tubular structure yet high defense effect. It is made of galvanized steel tubes or aluminum tubes by using vertical steel pales and horizontal rails to form the fence. It has excellent corrosion & rust resistance performance and enjoys a long service life. Its high strength makes it an excellent choice for all security purposes while its powder coating surface makes it adapt to most surroundings. Our steel fence is widely used in various commercial, residential and industrial applications, including but not limited to, villas, community gardens, schools, factories and other flower beds, lawns, sports stadiums, convention centers, squares, roads, balconies, etc.
Height (A) | 1200 mm, 1500 mm, 1800 mm, 2100 mm |
Width (B) | 1800 mm, 2000 mm, 2400 mm |
Vertical Picket (C) | 15 mm × 15 mm, 19 mm × 19 mm, 25 mm × 25 mm; thickness: 0.8–2.0 mm; |
Horizontal Rail (D) | 30 mm × 30 mm, 40 mm × 40 mm, 45 mm × 45 mm, 2 rails, 3 rails or 4 rails |
Vertical Pipe Spacing (E) | 100 mm, 110 mm, 120 mm |
Post (F) | 50 mm × 50 mm, 60 mm × 60 mm, 80 mm × 80 mm, 100 mm × 100 mm; thickness: 1.2–3.0 mm |
Fixing (G) | Steel brackets or aluminum brackets |
Post Cap (H) | Metal cap / anti-UV plastic cap |
Palisade Fence
Palisade Fence is a high security fencing prevailing in Europe, Australia and South Africa markets. It is designed to be strong, durable and provide excellent protection against climbing and cutting through. Its imposing appearance, minimal foot holes and robust vertical steel pales ensure its excellent protection against unauthorized access, vandalism and attack. Besides, it is also a good alternative to high walls. Typically, it is widely used to address a wide range of perimeter security needs from general purpose to high security purpose and is widely used in various residential, commercial and industrial applications, including but not limited to, highways, airports, docks, schools, sports grounds, leisure facilities, etc.
Height (A) | 1800 mm, 2100 mm, 2400 mm, 3000 mm |
Width (B) | 2750 mm |
Pale Type (C) | W-profile, D-profile and angle steel; |
Pale Top (D) | Square top, triple pointed top, single pointed top, round top, round & notch top, etc. |
Pale Thickness (E) | 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm |
Horizontal Rail (F) | Angle steel (40 mm × 40 mm × 4 mm, 50 mm × 50 mm × 5 mm, 50 mm × 50 mm × 6 mm) |
Post (G) | Square post (60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm); I post (100 × 55 mm) |
Connection (H) | Fish plate (40 mm × 8 mm × 150 mm) |

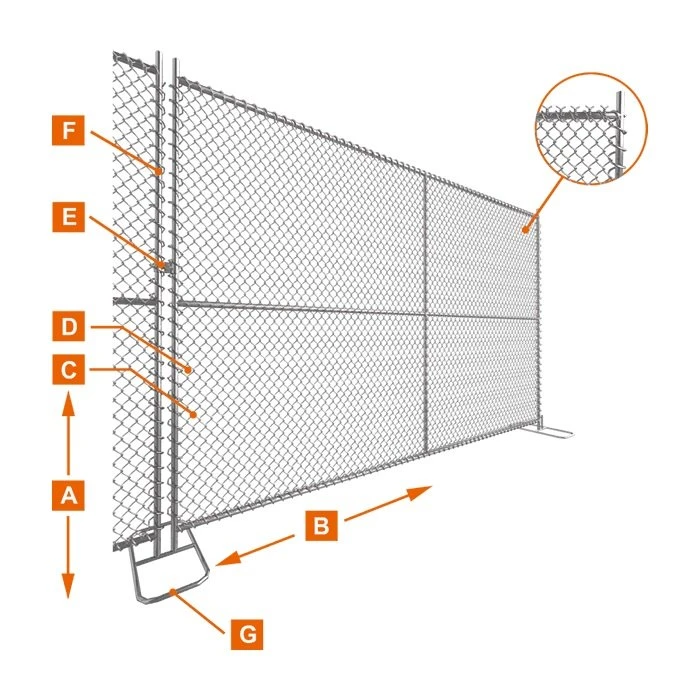

Temporary Chain Link Fence
Temporary Chain Link Fence, also known as portable chain link fence or chain link construction fence, is a kind of free-standing chain link fence with movable feet. It can be installed directly in a variety of grounds including sand, soil, asphalt and concrete without digging holes or removing excavated materials, which saves both time and labor. It is widely used to protect your property and prevent unauthorized persons from entering. Typically, temporary chain link fence is commonly seen in construction sites, residential sites, schools, major public events including sports, concerts, gatherings, swimming pools and traffic & crowd controls.
Height (A) | 1800 mm, 2400 mm |
Width (B) | 2400 mm, 3000 mm, 3700 mm, 4300 mm |
Wire Diameter (C) | 2.5 mm, 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm |
Mesh Opening (D) | 50 mm × 50 mm, 57 mm × 57 mm, 60 mm × 60 mm, 70 mm × 70 mm |
Clamp (E) | Metal clamp |
Frame (F) | Round pipe (outside diameter 32 mm, 38 mm, 40 mm) |
Base (G) | 915 mm × 350 mm × 200 mm, 760 mm × 460 mm × 200 mm |
Note: Single Swing, Double Swing and Sliding Gate is available to match the above fences.
